Pneumatic Vacuum Loader Conveying Machine

Basic Info

Model NO.	QVC
Certification	CE, GMP, ISO
Voltage	220V
Computerized	Non-Computerized
Customized	Non-Customized
Condition	New
Warranty	1 Year
MPa	0.4-0.6
Compressed Air(L/Min)	180-1440
Name	Pneumatic Vacuum Loader Conveying Machine
Transport Package	Wooden Case
Specification	QVC
Trademark	UNIMACH
Origin	China
Production Capacity	200sets/Year

Product Description

APPLICATION
QVC Series Pneumatic vacuum loader is widely used in automatic feeding material forTablet Press, pulverizer, capsule filling machine, vibration sifter, packing machine, Mixer and etc. It doesn't need any mechanical vacuum pump, so it is simple structure, Small volume, without repairing, no noise and easy being controlled. It can be stopped separating layer for the feeding material because the machine has high vacuum. QVC Series Pneumatic Vacuum Conveyer was designed according to international standard. It is easy cleaned and beautiful. It is up to GMP requirement.

CHARACTERISTIC:
Solve the problem thoroughly about the separating layer of material.
The sintered-metal filter is Japanese original.
It can be removed the material static electricity.
It is airtight without crossed contamination.
It is made in good quality stainless steel(304 or 316L).
It is made in non-toxic and corrosion resistant material.
Filter is easy cleaned.
It is controlled intelligently and automatically.
It is easy dismantled with building blocks structure.
It is easy set up and small volume, the weight is light
It is no noise and screening
It is economical and practical the cost is lower.

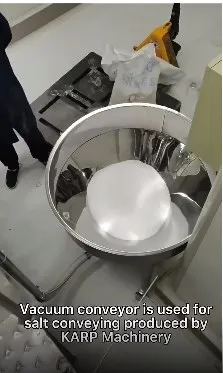

Pictures for QVC-4 pneumatic vacuum loader
Technical parameters:

Model	Capacity(kg/h)	Compressed Air(L/min)	MPa
QVC-1	350	180	0.4-0.6
QVC-2	700	360	0.4-0.6
QVC-3	1050	540	0.4-0.6
QVC-4	1500	720	0.4-0.6
QVC-5	3000	1440	0.4-0.6
